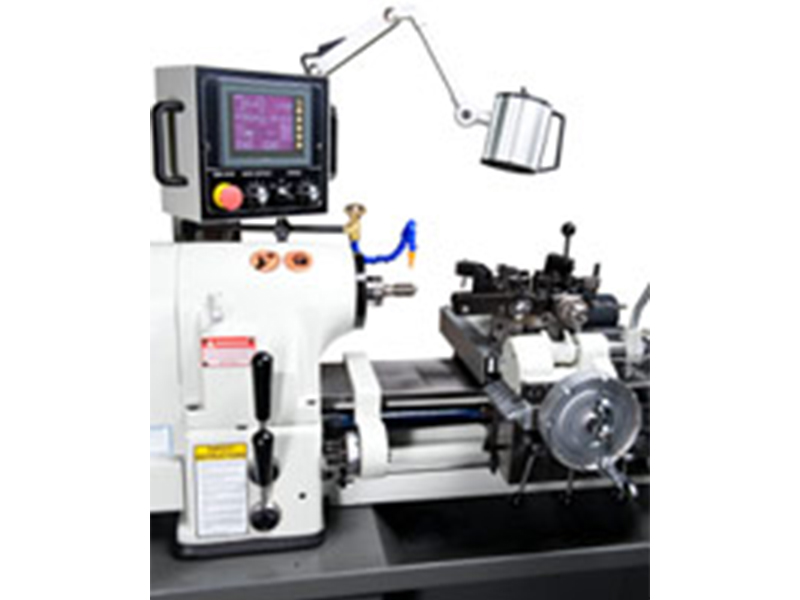

Toolroom Lathe
CHR-68e
  • 9" Maximum fixture diameter
  • 14" maximum distance from face of turret to spindle
  • The spindle is mounted in high precision preloaded angular contact ball bearings eliminating radial and end play.
  • Infinitely variable spindle speeds from 0-4000 RPM
  • Fast lever collet chucking with a single movement.

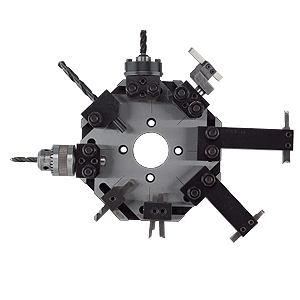

  • Preloaded ball bearing eight-station turret.
  • Solid hardened and ground alloy tool steel bed.
  • Independent electric variable feed.
  • Full bearing carriage with Turcite-B slideway bearing surface.
  • Powerful 5 HP frequency controlled motor
  • Hih/low speed quick change lever for convenience.

CYCLEMATIC have applied the Digital Threading technology from 618e toolroom lathe to CHR-68 chucker.

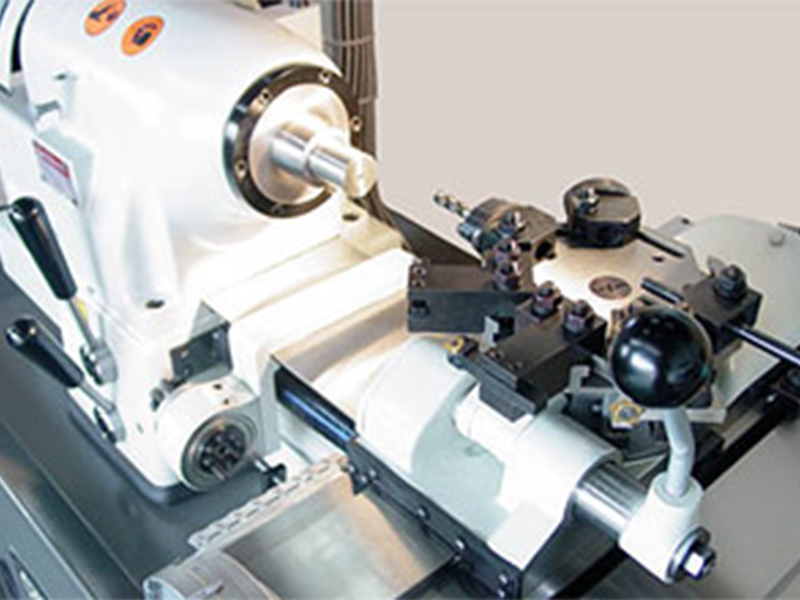

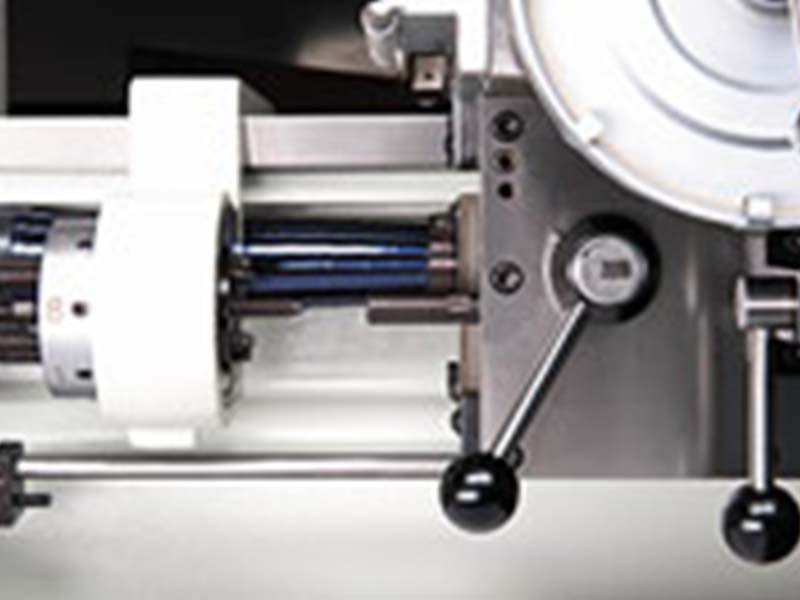

The chucker is part of our toolroom lathe lineup. It comes with a 8-station indexing tool turret for quickly changing tools on complicated job setups. It also has 8-position carriage stop that can be setup to simplify multiple repetitive tool feeds.

Previously for threading operations chucker lathe relied on a separate threading attachment that was bulky and cumbersome. Now with CHR-68e's Digital Threading capability, threading operations are microprocessor controlled and carried out by synchronized spindle speed and servo motor feed. All the operator needs to do is punch in desired thread pitch and thread direction then start the spindle rotation and carriage feed as normal using start/stop levers at the headstock. No gears to change. Less moving parts, easier maintenance.

CHR-68e 工具車床
CHR-68e 工具車床
CHR-68e 工具車床

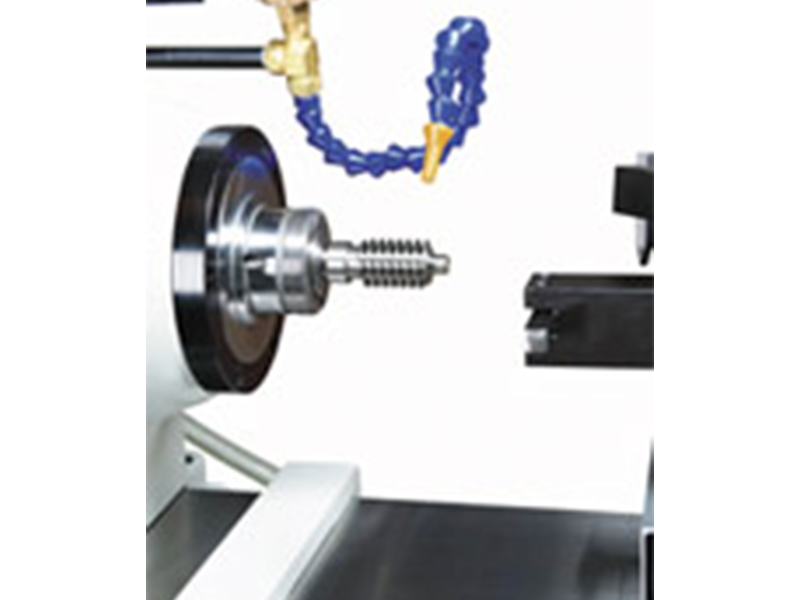

Digital Threading makes threading on chucker lathe easier than ever

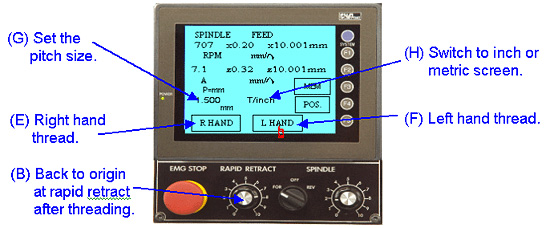

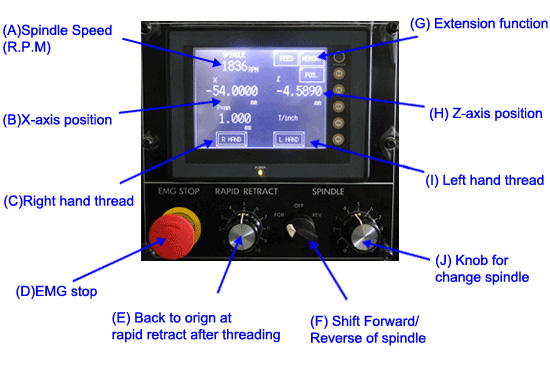

Digital Threading provides touchscreen LCD to select thread pitch. Choose target TPI or mm pitch on the screen , set spindle rpm and start threading just like on conventional lathes.

Simple No threading attachment. No threading gearbox. Less moving parts, quiet operation, maintenance free design.

Servo driven design

Internally, servo motor drives the leadscrew so feed rate is synchronized in proportion to spindle rpm.

CHR-68e 工具車床

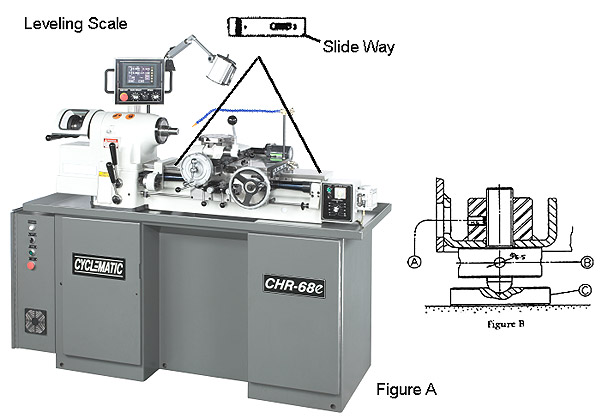

ADJUSTDTING PROCCESS OR LEVEKING MACHINE

CHR-68e 工具車床

SPINDLE TOOLING, TOOLING HOLDER AND OPTIONAL EQUIPMENT FOR CYCLEMATIC HIGH SPEED. HIGH ACCURACY TOOLROOM LATHES

Expanding Collet
Expanding Collet
Vacuum Chuck
Vacuum Chuck
Hydraulic Chuck
Hydraulic Chuck
Chuck Back Plate
Chuck Back Plate
6 3-jaw Chuck
6" 3-jaw Chuck
Lathe Dog
Lathe Dog
Face Plate
Face Plate
Pneumatic Chuck
Pneumatic Chuck
Precision Diaphragm Chucks
Precision Diaphragm Chucks
Step Chuck
Step Chuck
Straight and Taper Turning
            Slide for Double Tool Cross Slide
Straight and Taper Turning Slide for Double Tool Cross Slide
Quick Change Adjustable Tool Holder
Quick Change Adjustable Tool Holder
Quick Acting Recessing Tool
Quick Acting Recessing Tool
Knee Tool
Knee Tool
Slide Tool
Slide Tool
Boring Tool Holder
Boring Tool Holder
Centering and Facing Tool
Centering and Facing Tool
Releasing Tap Holder
Releasing Tap Holder
Tool Holder Extension
Tool Holder Extension
Adjustable Rotary Stops
Adjustable Rotary Stops
Adjustable Tool Holder
Adjustable Tool Holder
Releasing Tap Holder
Releasing Tap Holder
