CNC Toolroom Lathe
CJ-27CNC
  • Dovetail bed ways on x and z axes get maximum stability and makes it suitable to have deep turning.
  • Gang Tool Block for tool holders speeds up the tool changing time and provides high accuracy.
  • Small and compact design saves some work space and make it easy to operate.
  • The spindle adopts Air Collet Closer as standard equipment.
CJ-27CNC CNC Toolroom Lathe Series
CJ-27CNC CNC Toolroom Lathe Series
CJ-27CNC CNC Toolroom Lathe Series
CJ-27CNC CNC Toolroom Lathe Series

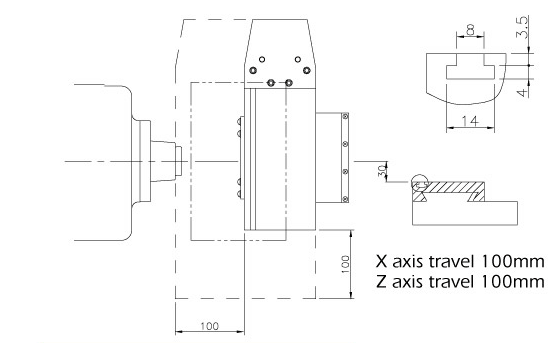

Tool Area

CJ-27CNC CNC Toolroom Lathe Series

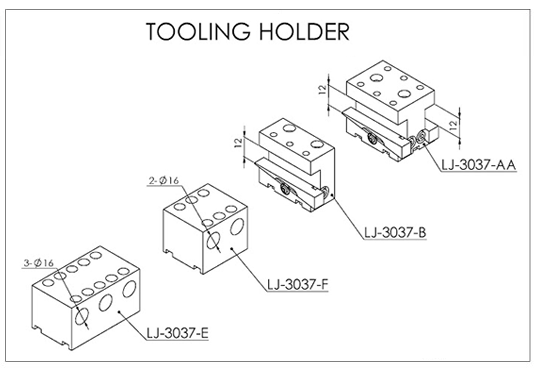

Tool System

CJ-27CNC CNC Toolroom Lathe Series
CJ-27CNC CNC Toolroom Lathe Series

Outline Dimensions

CJ-27CNC CNC Toolroom Lathe Series

Standard Equipment

  • Gang Tool Block x 1
  • Tool Holder
    LJ-3037-AA x 1
    LJ-3037-B x 1
  • Air Collet Closer
  • Coolant System
  • Work Light

Optional Accessories

  • Collet
  • Collet Stop
  • Expending Collet
  • Step Chuck
  • 3-Jaw or 4-Jaw Chuck
  • Tool Holders
